Audio-Technica AT-LPW40WN

Name: Audio-Technica AT-LPW40WN
Brand: Audio-Technica
SKU: LPW40WN
Price: 499.99 USD
Availability: InStock

Audio-Technica

$499.99

In-Store Pickup Only
This item is available for in-store pickup only at our downtown San Luis Obispo, CA store. It cannot be shipped.

The Audio-Technica AT-LPW40WN is a fully manual belt-drive turntable engineered for high-fidelity vinyl playback. Its anti-resonance MDF plinth features a handsome simulated walnut veneer, while a sensor-monitored DC servo motor maintains accurate platter speeds at 33-1/3 and 45 RPM.

A straight carbon-fiber tonearm, adjustable anti-skate control, die-cast aluminum platter, and included AT-VM95E Dual Moving Magnet cartridge deliver precise tracking and detailed sound. The cartridge accepts any stylus in Audio-Technica's VM95 Series, making future upgrades easy.

The built-in switchable phono preamp provides both phono-level and line-level output, allowing the AT-LPW40WN to connect to traditional stereo receivers, powered speakers, and other audio systems with or without a dedicated phono input.

Key features:

Fully manual belt-drive operation
Plays 33-1/3 and 45 RPM records
Sensor-monitored motor with active speed stabilization

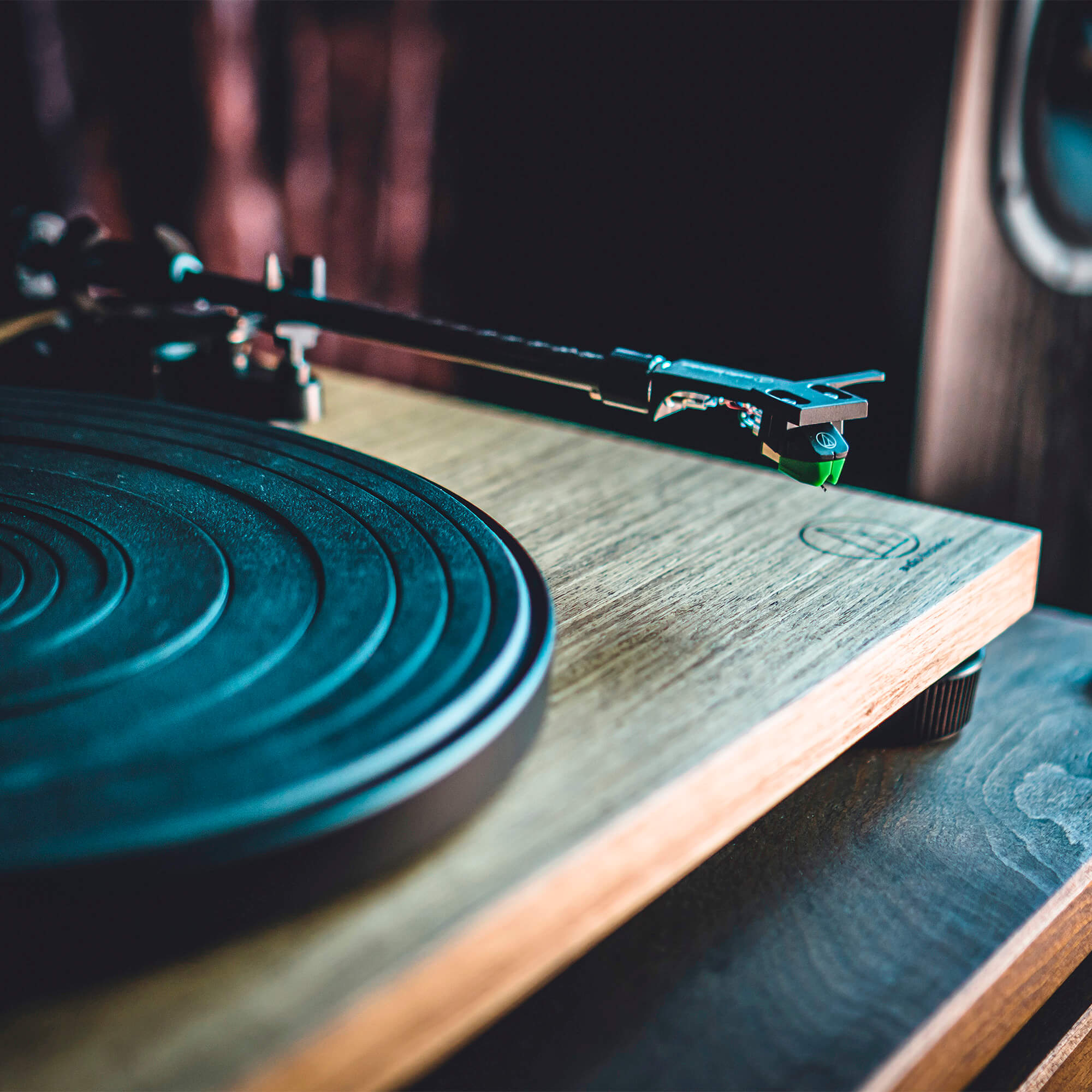

Straight carbon-fiber tonearm
Adjustable dynamic anti-skate control
AT-VM95E cartridge with elliptical stylus
Die-cast aluminum platter with rubber mat
Switchable phono/line preamp
Anti-resonance MDF plinth with simulated walnut veneer

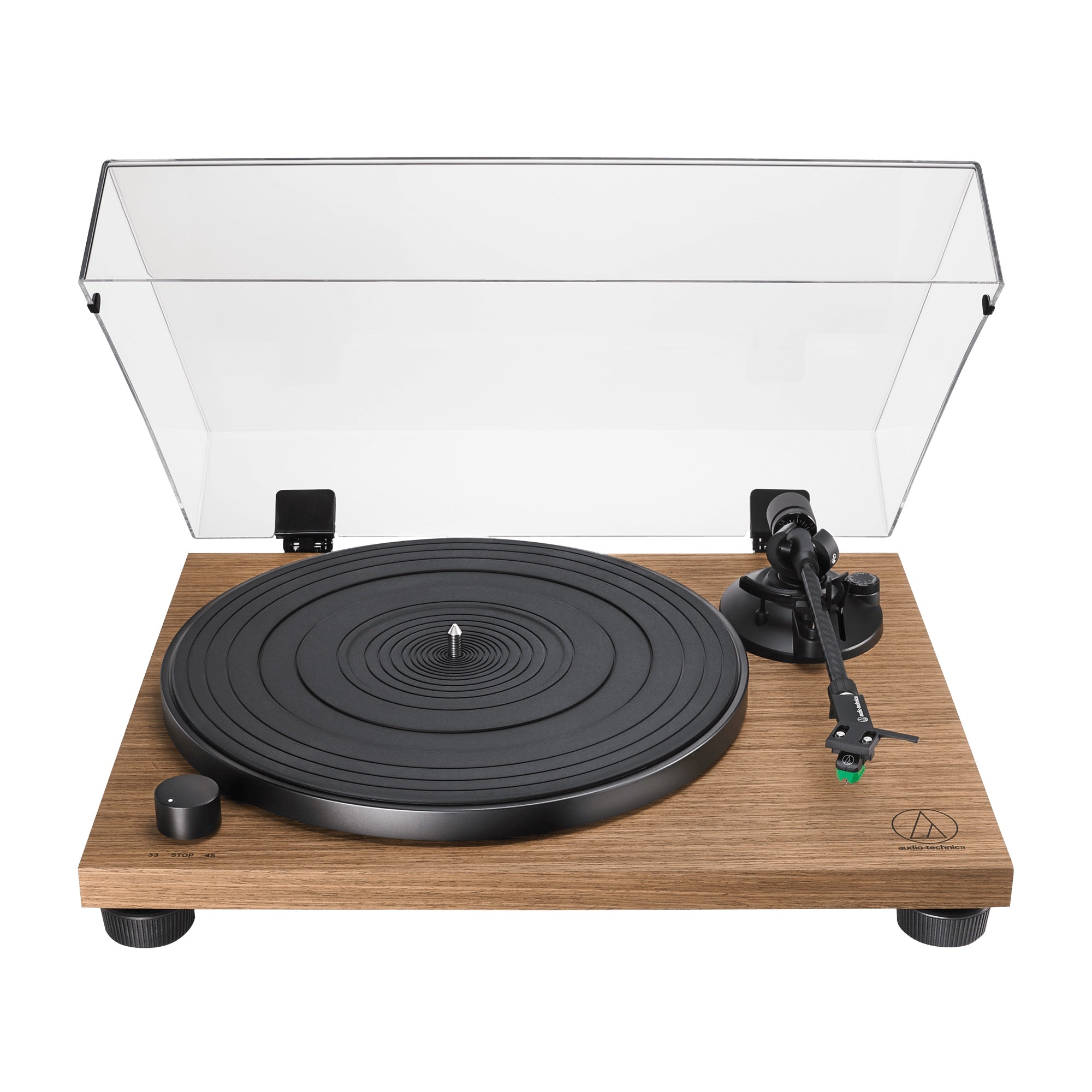

Removable hinged dust cover

Specifications

Type: Fully manual belt-drive turntable
Motor: DC servo motor with active speed stabilization
Speeds: 33-1/3 and 45 RPM
Platter: Anti-resonance die-cast aluminum with rubber mat
Wow and flutter: Less than 0.15% WRMS at 33 RPM and 3 kHz
Signal-to-noise ratio: Greater than 60 dB
Tonearm: Static-balanced straight carbon-fiber tonearm
Effective tonearm length: 223.6 mm
Overhang: 18.6 mm
Tracking error angle: Less than 2 degrees
Stylus-pressure adjustment range: 0–3 g
Compatible cartridge weight: 12–17 g
Included cartridge: Audio-Technica AT-VM95E Dual Moving Magnet cartridge
Stylus: 0.3 × 0.7 mil elliptical
Replacement stylus: AT-VMN95E
Headshell: AT-HS4 universal 1/2-inch-mount headshell
Power requirements: 100–240 V, 50/60 Hz
AC adapter output: 12 V, 0.5 A
Included accessories: Dust cover, hinges, platter, rubber mat, drive belt, counterweight, headshell, cartridge, 45 RPM adapter, RCA audio cable and AC adapter

Dimensions

Width: 16.53 in. (420 mm)
Depth: 13.38 in. (340 mm)
Height: 4.6 in. (116.9 mm)
Weight: 10.40 lb. (4.72 kg), excluding dust cover

Connectivity

Audio output: Analog stereo RCA
Built-in preamp: Switchable phono preamplifier
Output modes: Phono level or line level
Phono output level: 4.0 mV nominal at 1 kHz, 5 cm/sec
Line output level: 200 mV nominal at 1 kHz, 5 cm/sec
Phono preamp gain: 35 dB nominal, RIAA equalized
Included cable: Approximately 3.3 ft. (1 m) dual-RCA stereo cable
Compatible systems: Receivers and amplifiers with a phono input, auxiliary/line-level inputs, and powered speakers with an analog input
